Understanding TRV

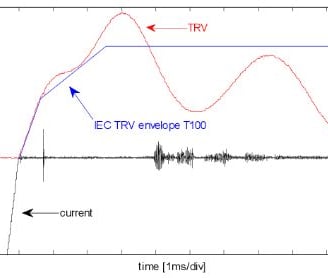

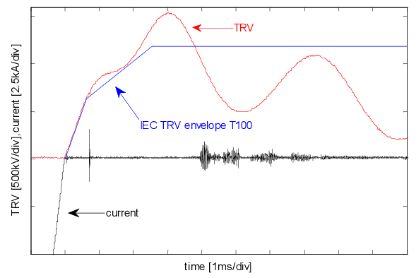

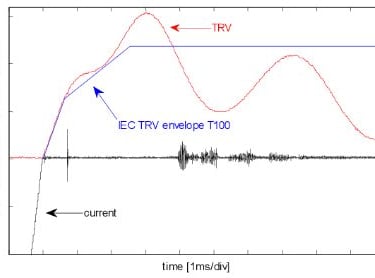

Transient Recovery Voltage (TRV) is an inherent phenomenon in electrical systems that occurs when a short-circuit current is interrupted by a circuit breaker. These temporary voltage surges, caused by the sudden discharge of energy stored in the circuit's inductances, can pose a significant threat to the stability and safety of the power grid.
Key Parameters Related to TRV
Three key parameters characterize TRV:
Peak Recovery Voltage (TRV): The maximum voltage reached across the circuit breaker's terminals after the interruption of the short-circuit current.
Rapid Recovery of Recovery Voltage (RRRV): The rate at which the recovery voltage rises back to its nominal value after the short-circuit current is extinguished. A high RRRV indicates a rapid system stabilization capability.
Maximum Rate of Rise of Recovery Voltage (MRRRV): The rate at which the voltage increases during the recovery phase. A high MRRRV can cause voltage spikes and electrical arcs, highlighting the importance of proper circuit breaker design to manage this voltage rise safely and controllably.
Impact of TRV on Power Grids
TRV can have detrimental consequences for power grids, including:
Equipment Damage: Transient voltage surges can exceed the insulation capability of sensitive electronic equipment, leading to failures and malfunctions.
Power Quality Degradation: TRV can introduce distortions and disturbances on the network, negatively affecting the performance of electrical devices.
Arc Fault Hazards: A high MRRRV can create conditions conducive to electrical arc formation, potentially causing fires and significant property damage.
Managing TRV for a Stable Power Grid
Effective TRV management is crucial for ensuring the safety and reliability of power grids. This involves:
Selection of Appropriate Circuit Breakers: Circuit breakers should be chosen based on their ability to handle the expected TRVs in the network.
Implementation of Surge Protection Devices: Devices such as surge arresters and spark gaps can be installed to limit the effects of TRV on sensitive equipment.
Optimized Power System Design: Proper component layout and grounding can help reduce TRV magnitude.
By understanding TRV and implementing appropriate management measures, power grid operators can ensure the stable, safe, and reliable operation of their critical infrastructure.
