Transformer Percentage Impedance:
A Key Concept for Electrical Engineers ⚡
Percentage impedance is a critical parameter for transformers, playing a vital role in their performance and the overall stability of power systems. This concept, while technical, is essential for electrical engineers to grasp for designing, operating, and maintaining efficient and reliable electrical networks.
What is Percentage Impedance?

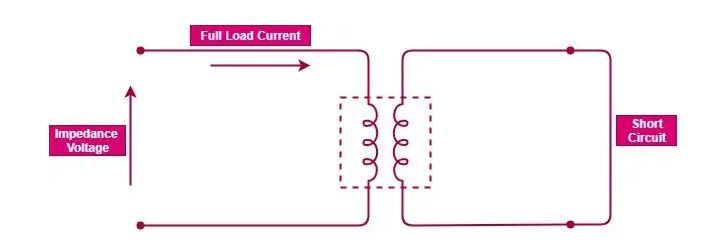

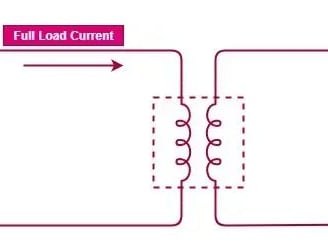

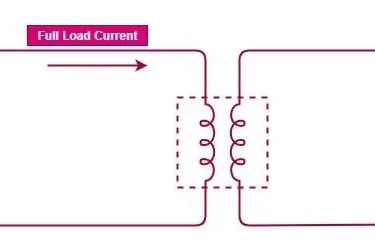

Percentage impedance (%Z) of a transformer refers to the voltage drop on the transformer expressed as a percentage of the rated voltage, when full load current flows through it. This parameter indicates how much voltage will drop across the transformer when it is supplying its full rated current.
Why is Percentage Impedance Important
1-Short Circuit Current Calculation
%Z is used to calculate the prospective short circuit current at the transformer's secondary terminals. A higher %Z means a lower short circuit current, which affects the design of protection systems.
2-Voltage Regulation
It influences the voltage regulation of the transformer. Low %Z leads to better voltage regulation but higher short circuit levels.
3-Load Sharing Between Transformers
When multiple transformers operate in parallel, %Z ensures proper load sharing. Transformers with the same %Z will share loads proportionally to their ratings.
4-Fault Level Assessment
%Z is crucial for determining the fault level at different points in the electrical network, impacting the design and rating of switchgear and protective devices.
5-Standards and Regulations
Understanding and applying the appropriate standards is crucial for ensuring the safe and efficient operation of transformers. Key standards include:
IEEE C57.12.00: General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers.
IEC 60076: Power Transformers.
CSA C88-M90: Power Transformers and Reactors.
ANSI/IEEE C57.91: Guide for Loading Mineral-Oil-Immersed Transformers.
Conclusion
Grasping the concept of percentage impedance is crucial for electrical engineers involved in the design, operation, and maintenance of power systems. It ensures proper voltage regulation, fault level management, and efficient load sharing among transformers, contributing to the overall stability and reliability of electrical networks.
